01
Mobile Data Unit
Adds 4G mobile-data connectivity to the IPU for remote or off-grid locations without usable Wi-Fi.
Connectivity optionSentinel · Components
One system.
Four layers.
Sentinel isn’t a camera connected to a cloud service. It's a coordinated field-to-server system in which every layer has a specific job—and every layer is designed to work with the others.
System architecture
From photons in the field to evidence in your hand.
Observation starts at the Intelligent Camera Unit, is coordinated and analyzed locally by the Image Processing Unit, powered by the site’s selected power system, and connected to Sentinel Core for deeper analysis, management, logging and notification.
01ICUIntelligent Camera Unit
Observe + process
Observe + process
→
02IPUImage Processing Unit
Coordinate + analyze
Coordinate + analyze
→
04COREVerify + manage + alert
→
✓YOUClear, useful evidence
03PSU / SITE POWERPower Supply Unit
Power the field system
Power the field system

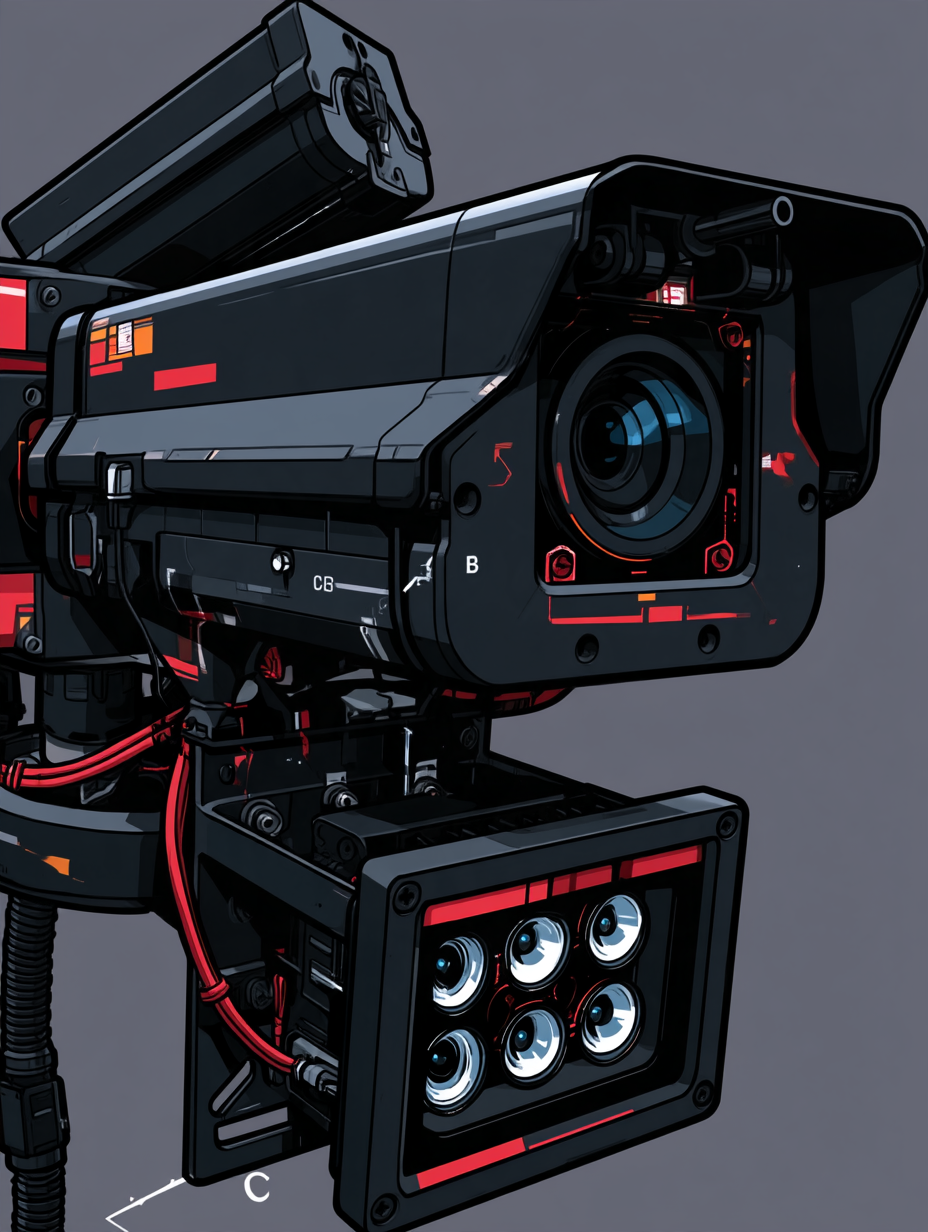

01
Intelligent Camera Unit · ICU
The eyes—and the first layer of intelligence.
Every Sentinel camera is an active part of the detection system, not merely an image source.
Each ICU captures high-resolution still imagery and video concurrently, performs local image processing, participates in IntelliSense adaptive sensing, and contributes the first stage of filtering before data ever reaches the IPU or Sentinel Core.
A 12-megapixel Sony image sensor provides detailed daytime imagery, while a six-LED flood provides 940 nm night illumination invisible to animals. Optional mmWave radar adds an additional sensing layer for enhanced target detection and tracking. Camera behavior can be tuned individually to the field it sees, including regions of interest, ignore regions, exposure, focus, day/night behavior and sampling parameters.
12 MPSony image sensor
Still + videoCaptured concurrently
6-LED floodPowerful 940 nm night illumination**Invisible to animals
IntelliSenseAdaptive local sensing
mmWave radarOptional enhanced sensing
Wide angle / standard lensChoose your field of view

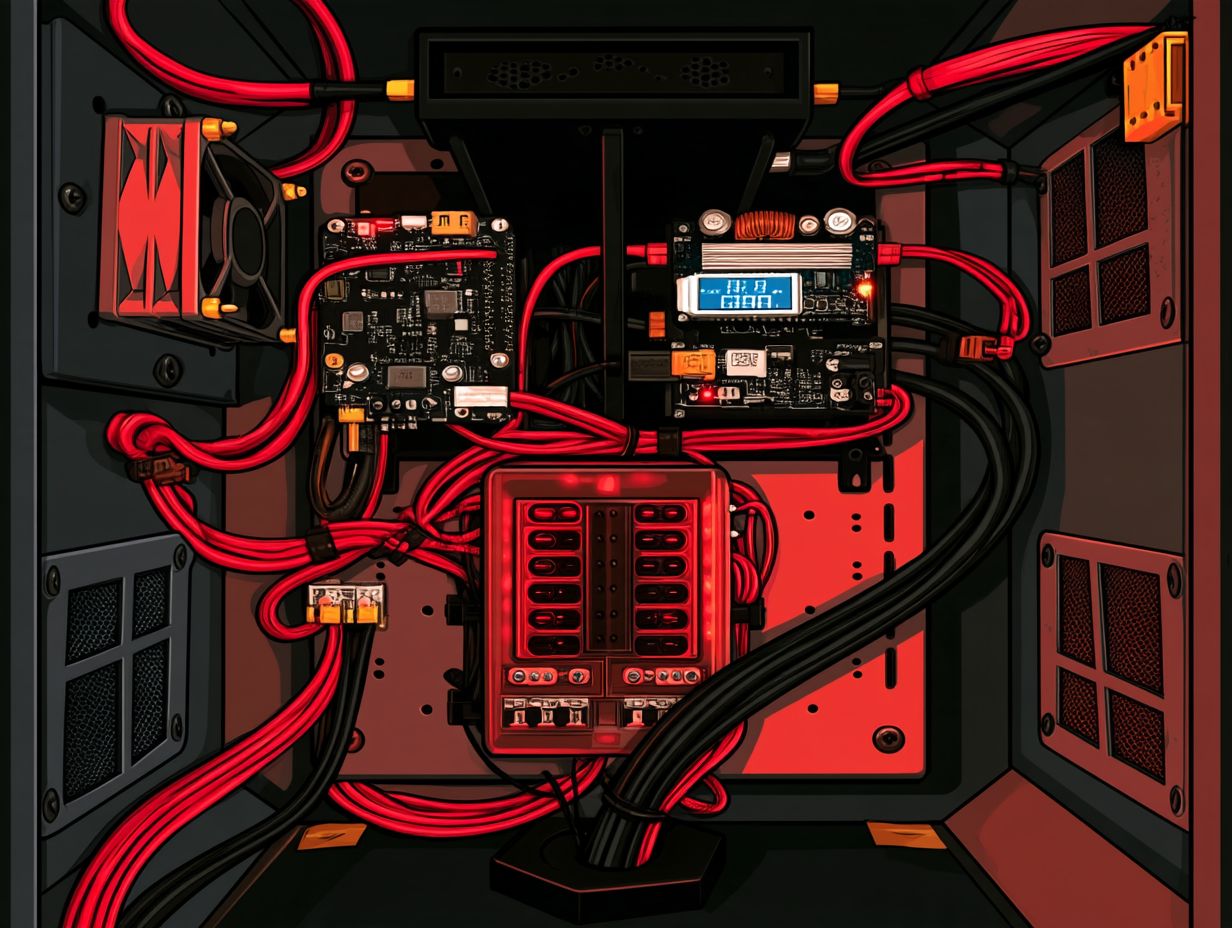

Image Processing Unit · IPU
The field coordinator.
One IPU turns a group of cameras into a single installation.
The Image Processing Unit manages and coordinates as many as ten Intelligent Camera Units. It receives candidate observations from the cameras, performs additional local analysis, manages communications with Sentinel Core, protects important evidence and maintains the installation’s local operating record.
The IPU is also Sentinel’s resilience layer. When server or mobile-data connectivity is interrupted, it can continue local monitoring and processing, retain work for later synchronization, and progressively adapt its workload if local resources become constrained.
Power management, communications, cooling and extensive operational telemetry are integrated into the field system so that Sentinel Core can understand not only what the cameras are seeing, but how the installation itself is behaving.
Up to 10ICUs per IPU
Local AIField-side detection
FailoverContinues without Core
Audit trailExtensive telemetry + logs
02
03

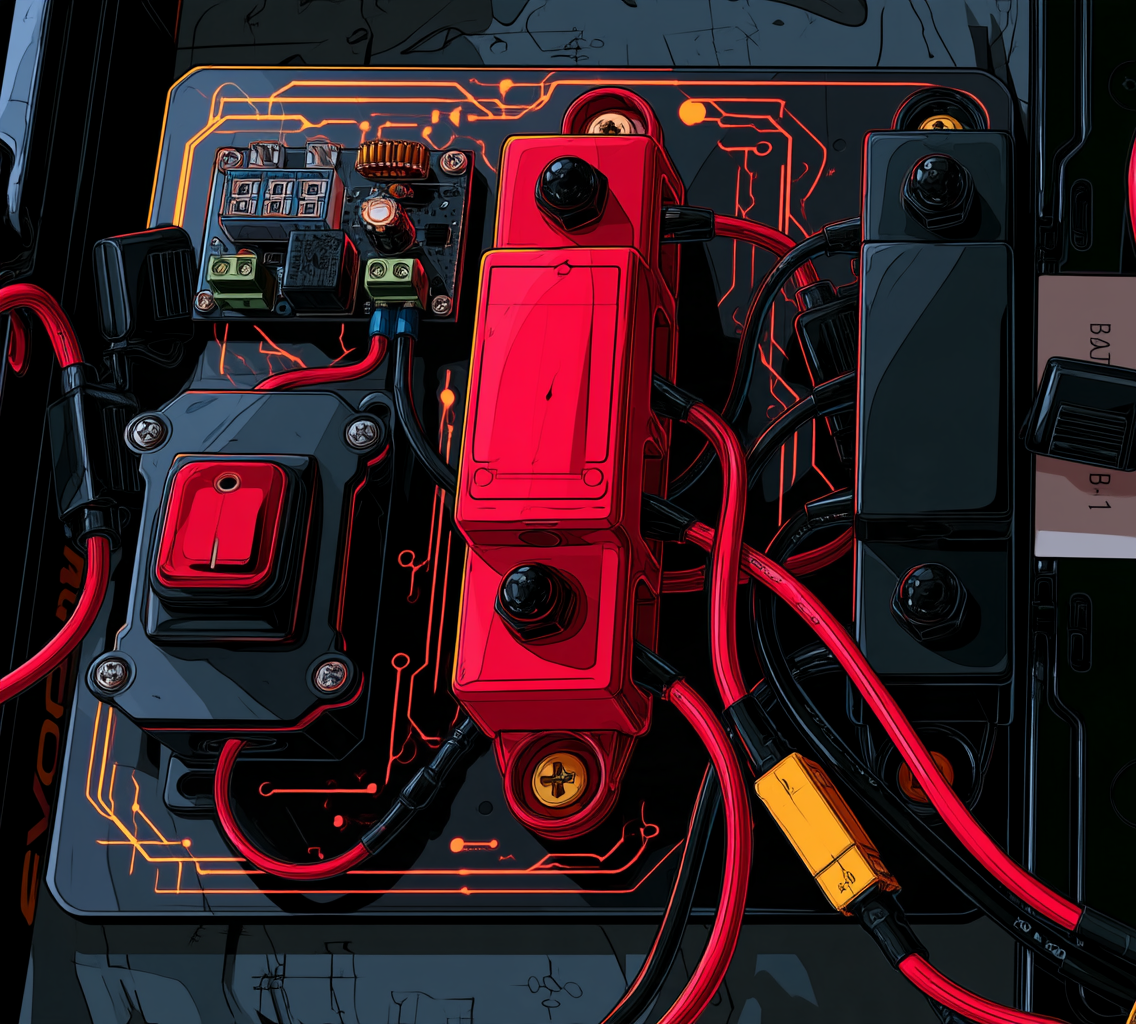

Power Supply Unit · PSU
Power where the grid ends.
Sentinel is designed to treat power as part of the system—not as an afterthought.
At off-grid sites, the PSU manages the installation’s power supply and provides the interface between batteries, solar charging and the Sentinel field equipment. Protection, distribution and charging are designed around unattended operation in real field conditions.
Sites with commercial power can use a mains power supply instead. The power architecture is selected for the location, camera count, communications method and desired unattended runtime rather than forcing every installation into the same configuration.
GridCommercial AC power
SolarPanel + LiFePO₄ storage
Battery swapExtended unattended operation
Sentinel Core
The system behind the systems.
Sentinel Core connects individual field installations into one managed wildlife-intelligence platform.
Core performs the server-side stages of Sentinel’s detection and verification pipeline, coordinates deployed configurations and software, monitors system health, preserves audit data, manages wildlife observations, sends alerts and generates the customer-facing dashboard.
It also gives Verbium the operational depth needed to support the system properly: camera status, processing rates, battery behavior, equipment records, service history, configuration state and other telemetry can be reviewed centrally without exposing that complexity to customers.
DetectionVerificationAlertsFleet managementWildlife databaseAudit trailCustomer dashboardService records
04
The starting point
ST-100
Your complete Sentinel installation starts here.
Base systemWi-Fi · 2 cameras
1 ×Image Processing Unit
2 ×Intelligent Camera Units
Wi-FiLocal network connectivity
CoreSentinel Core integration
Purchasefrom ¥250,000
Short-term rental
from ¥45,000monthly
Pricing assumes that AC power is available at the installation site. Field power systems are available separately. Pricing is provisional: a new generation of Sentinel hardware will be available soon, and pricing will be updated at that time. Please contact Verbium for more information, a site consultation or a quote.
Configure it for the field
Start with Sentinel.
Add what the site needs.
The field hardware is modular so connectivity, mounting and power can be selected independently around the actual installation rather than bundled into a one-size-fits-all package.
02
Tankan Installation Kit
For customers who plan to install Sentinel themselves or have a local contractor perform the installation. Includes two vertical anchors, horizontal cross-members, brackets and clamps for a robust, field-adjustable field installation.
Mounting option03
AC Power Adapter
For installations with reliable commercial power. Provides a simple direct power path for continuous operation.
Power option04
Solar Power Kit
One PSU, two 100 Ah LiFePO₄ batteries, two 200 W solar panels, a charge controller, and the mounting hardware needed for autonomous field power.
Power option05
Battery Kit
One PSU with 100 Ah LiFePO₄ batteries and quick-change connectors. Choose the capacity that fits the site and service interval. (Especially useful when you intend to swap batteries in a rotating cycle.)
2 batteriesApprox. 4–5 days
3 batteriesApprox. 6–8 days
4 batteriesApprox. 8–10 days
06
Additional Camera
Expand an ST-100 installation with additional Intelligent Camera Units as coverage needs grow. One IPU supports up to 10 cameras: up to four can be mounted on the same tankan pipe, with up to six more positioned elsewhere around the site.
Coverage expansion07
Custom Color
Choose a custom finish for both the Sentinel hardware and the mounting hardware to suit the site, surrounding architecture, visibility requirements or customer preference.
Finish option08
Traditional Mounting Bracket
Wall-mount hardware for installations where a conventional building or structure provides the best camera position.
Mounting optionBattery runtime is approximate and varies with camera count, illumination, environmental activity, communications method, weather and operating configuration. We’re incorporating power-use reductions into updated hardware; final operating figures for the Solar Power Kit and Battery Kit will be published when that work is complete.
What does an installation look like?
Same architecture.
Different fields.
Trail / park
Wide public-safety coverage
- 4 Intelligent Camera Units
- 1 Image Processing Unit
- Mobile Data Unit
- Solar Power Kit
- Tankan Installation Kit
Multiple viewpoints around a trail, viewpoint, park or access route with continuous remote connectivity.
Farm / facility
Flexible perimeter intelligence
- 3–6 Intelligent Camera Units
- 1 Image Processing Unit
- Wi-Fi or mobile data
- AC or solar power
- Wildlife / person / vehicle detection
A mixed-use configuration that can watch wildlife approaches while also providing useful property awareness.
Isolated wildlife site
Monitoring beyond the network
- 2–4 Intelligent Camera Units
- 1 Image Processing Unit
- Solar + battery power
- Local processing
- Intermittent synchronization
Persistent observation where permanent communications infrastructure is unavailable or unnecessary.
Installation
Start with the site,
not the catalog.
Every Sentinel installation begins with a complimentary site evaluation. We look at the area that needs to be observed, likely animal approaches, available infrastructure, mounting positions, communications and power before recommending a configuration.
Typical installation in Hokkaido
from ¥25,000subject to site evaluation
Pricing is provisional. A new generation of Sentinel hardware will be available soon, and pricing will be updated at that time.
Pricing
Four parts.
No mystery.
Sentinel pricing separates the one-time work of configuring and installing a system from the hardware and the ongoing service required to operate it.
Mobile data model¥20,000 + ¥3,500 per camera
Prefer operating expense?ST-100 short-term hardware rental from ¥45,000Monthly · Sentinel service is additional. Separate setup and installation fees apply. Please contact Verbium for details.
Monthly service includes
Sentinel CoreSoftware licenseSystem managementSystem tuningRegular functional enhancementsCustomer dashboard accessMobile data where applicableMonitoringOn-site service
Pricing is provisional. A new generation of Sentinel hardware will be available soon, and pricing will be updated at that time. Prices may also vary with system configuration, installation requirements and component costs. We provide a site-specific quotation before installation.
One coordinated system
Field hardware.
Local intelligence.
Central understanding.
Every Sentinel component exists to support the same job: preserve a clear, dependable path from what happened in the field to the evidence you use to make a decision.
Ask us to configure Sentinel for your site →
